全自动纸箱成型机型号E3
全自动纸箱成型机型号E3
- 能力：最高速度2400只/小时
- 纸板类型：瓦楞纸板/PP板材
- 盒型: Plaform, Citrus,P84,Open Column 开口箱
- 盒子尺寸：最小300x200x58mm至最大600x400x250mm
- 交货时间：±45天(取决于生产排程)
CYCLE DESCRIPTION工作描述
The blank is picked from the loader by 4 vacuum cups installed on an arm, mechanically synchronized by the main chain. The blank is driven by the main chain to the forming section. During forward movement the glue is applied. The blank is folded around a mould. Top flaps are folded and glued by a pneumatic folding/pressing device.
真空吸盘在料仓取纸板，通过链条输送到成型区域。在纸板输送过程中，完成热熔胶施胶。在成型区域，通过气动部件完成成型。
MAIN FEATURES OF THE MACHINE
主要功能

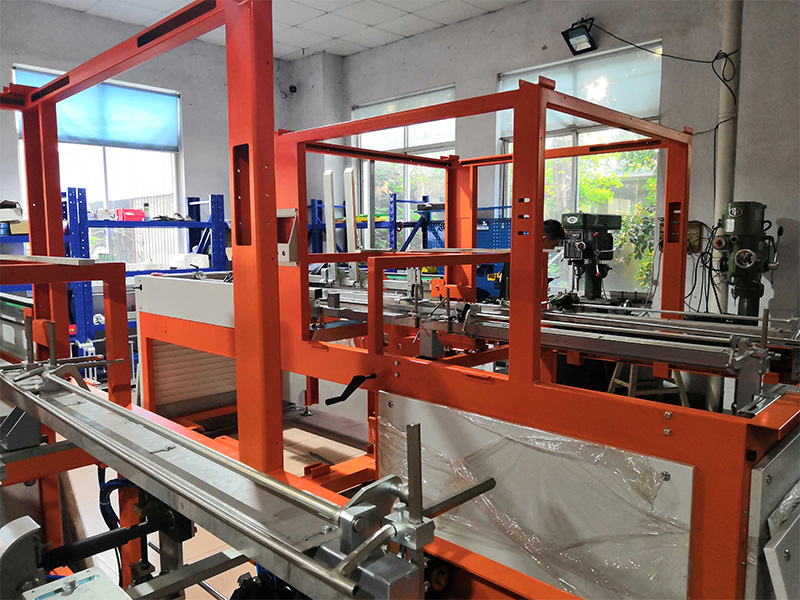

Welded and painted steel frame.
碳钢机架,防锈喷涂处理；
Horizontal loader to help blank positioning.
水平料仓，易于纸板定位；
Blank picking by vacuum cups controlled by Venturi system (one Venturi system for each vacuum cup).
文丘里系统产生真空，每一只吸盘由一只阀组系统控制；
Blank pushing chain controlled by inverter.
变频器控制纸板进纸链条；
Forming head controlled by inverter.
变频器控制成型模具；
Fast change over by means of hand wheels equipped with direct drive indicators.
手轮和计数器装置，使模具更换更加便捷；
Citrus folding system controlled by pneumatic pistons and with possibility of setting both height and width.
摇盖成型由气缸动作完成，并可以增加长边和短边的两层纸板结构；

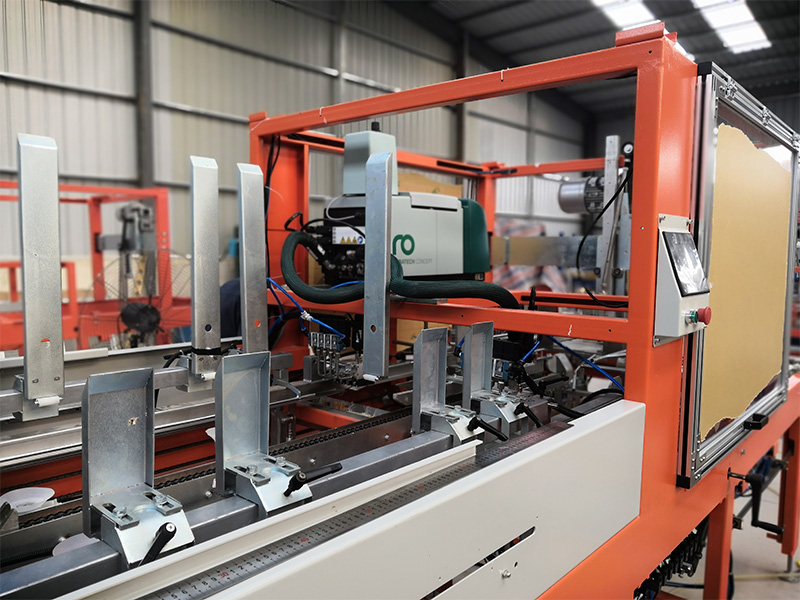

Glue applicator: SMI OEM Standard Gluing machine (ROBATECH or Nordson or Valco Melton，options） equipped by 2 guns（3/4 guns optional）.胶机容量：SMI OEM标准胶机(瑞士乐百得\美国诺信\美国阀科等可选)胶机系统，两管两枪（三管三枪/四管四枪可选）；
Transparent safety doors with aluminium frame, controlled by safety micro switches.
可视化设计，铝型材框架更加美观，并配置安全开关。
User friendly interface with touch screen that helps the operator in reading and programming machine parameters. Available size parameters, machine status and errors list. Capacity of storage of 100 different programs.
人机界面，触摸屏操作。可显示工作状态、参数和报警信息等，可存储100个 模块；
Painting : frame RAL 2004 ; panels RAL 7035.
油漆: 框架RAL2004, 面板RAL7035；
TECHNICAL DATA
技术参数
Max Speed: 2400 Trays/hour.
最大产量：2400只/小时；
Production running speed depends on box shapes, board dimensions and quality.
实际生产速度与箱型、纸板尺寸和质量有关；
Electrical supply: 400 V – 50Hz 3 phases + N + G
电源标准：400 V – 50 Hz ?3 phases + N + G ?（国内380V)
Control voltage: 24 VDC
控制电压：24 VDC
Working temperature: from 5°C to 35°C.
工作温度：5°C-35°C
Installed power: 5.65KW
装机功率：5.65 KW
Air consumption: 11 Nl / cycles.
压缩空气：11升/循环，标准大气压下；
Weight: 1280 KG 重 ?量：约1280公斤
